Horizontal Stabilizer Continued

DATE: 09-17-2024 TIME: 3:00

Today I continued with the horizontal stabilizer process by making the 4 cradles suggested on page 8-7 figure 3. As I had some solid board lying around we used that and a 2×2 square rod for the bases. Using the board is not as good as ply as the board will split if you are not careful. Other than that it worked fine although I probably need a new jigsaw :).

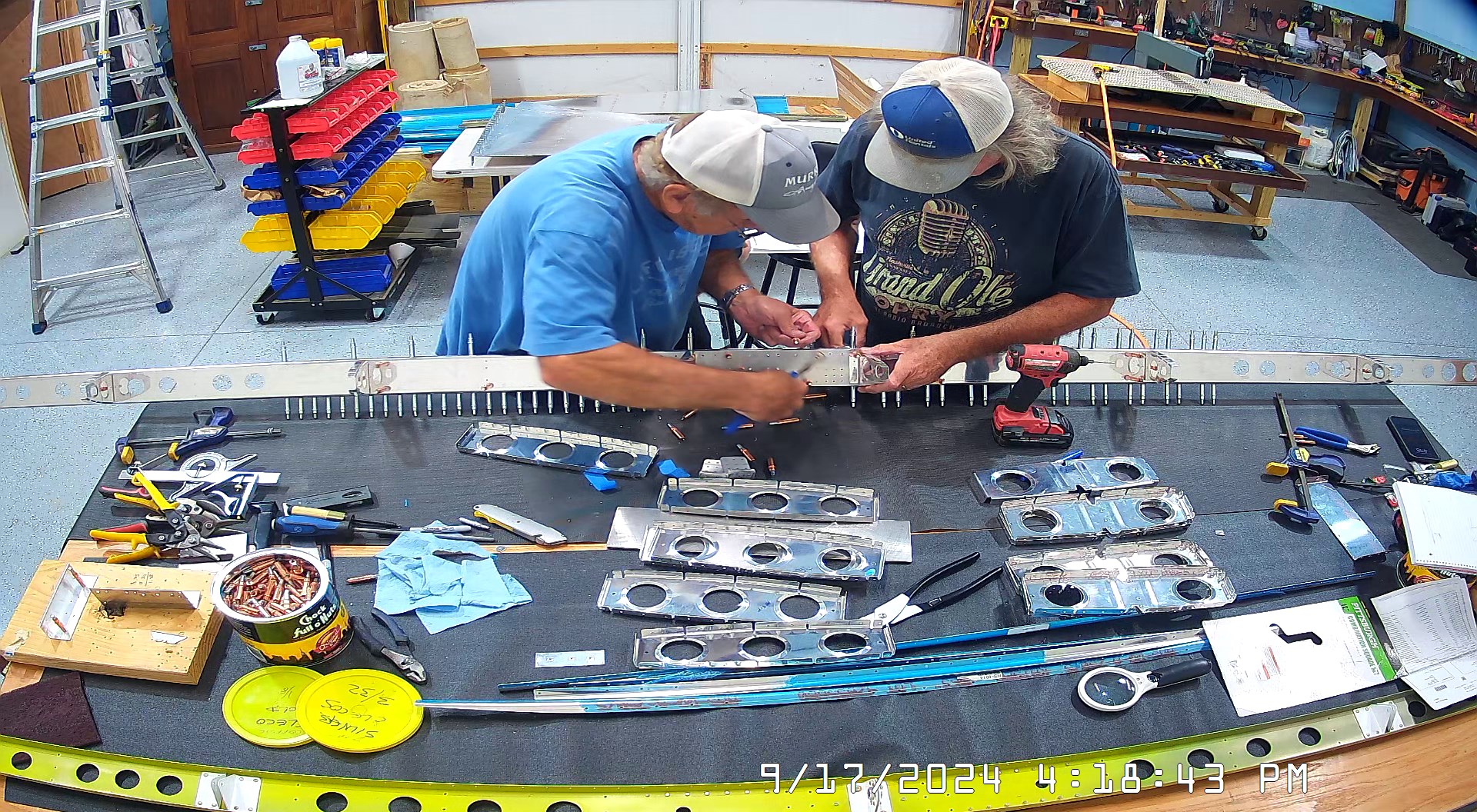

We then set to assembling all the HS-1004 and HS-904 and HS-905s to the HS-1002 forward spar and final size drilling them and drilling the additional holes in the inboard locations as specified in the manual. I take my time working at this, checking and double checking before cutting or drilling anything. I always have in my head the truism “there is never time to do it right, but always time to do it over”. Doing it over is time consuming and can be costly. So far, I am doing OK.

One thing I am doing a little differently…I have not primed and riveted the HS-1007 to the HS-1002 rear spar yet even though it is specified on page 8-6 in steps 1 and 2. It isn’t necessary to have that done when you are final sizing and drilling the HS-1004, 905 and 904 ribs, so far as I can see so I figured to leave that until I can prime most of the skeleton and, possibly, the skins. If this doesn’t work out well, I’ll let you know.

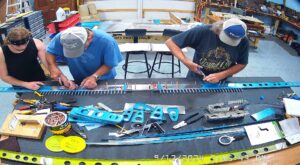

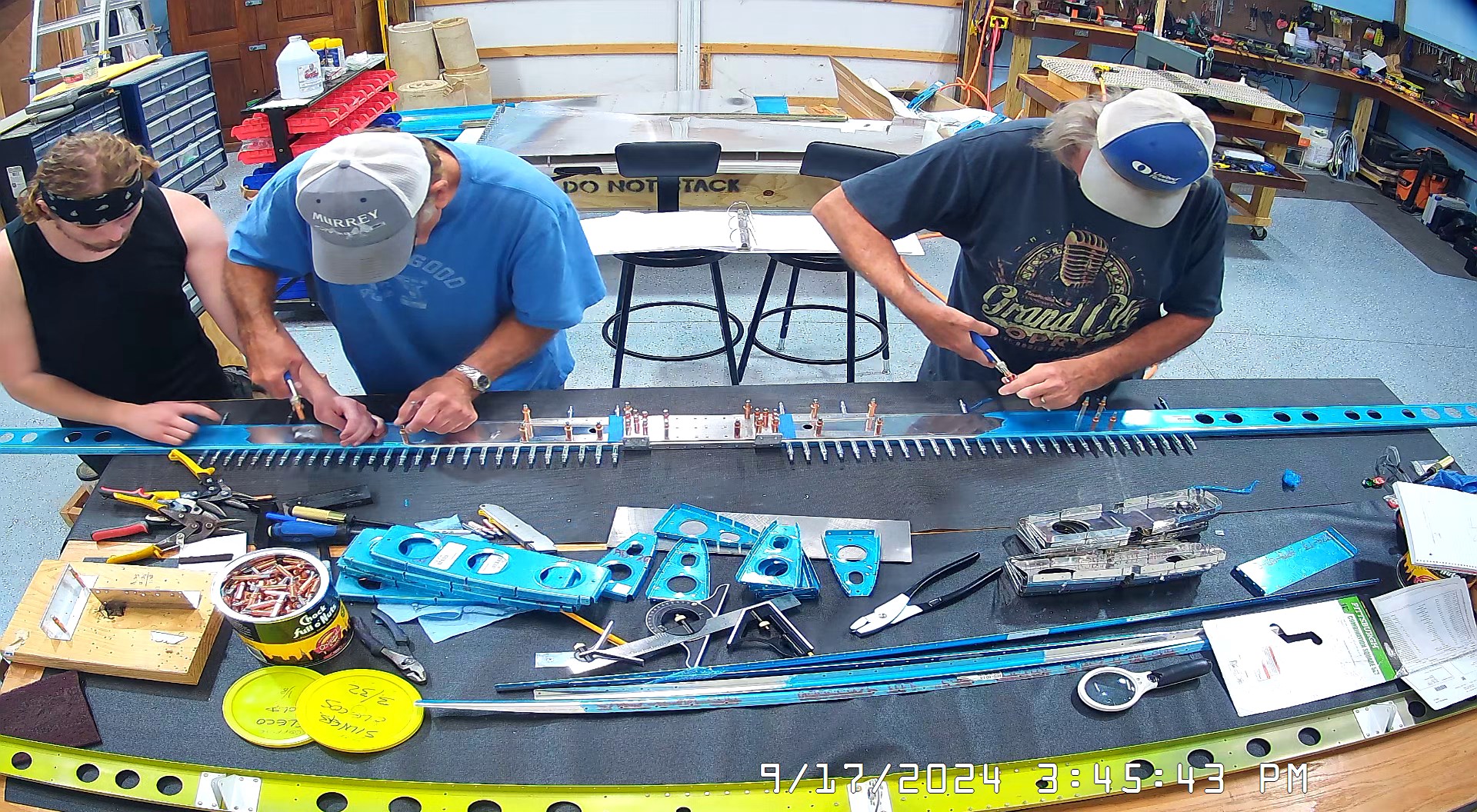

HS: Attaching HS-1004 & HS-904 Ribs To HS-1002

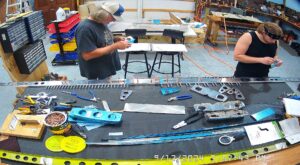

HS: HS-1002, 1007, 1008, 904, 905 & 1004 All Assembled
HS: Attaching the HS-1013 front spar caps to deburred HS-1002

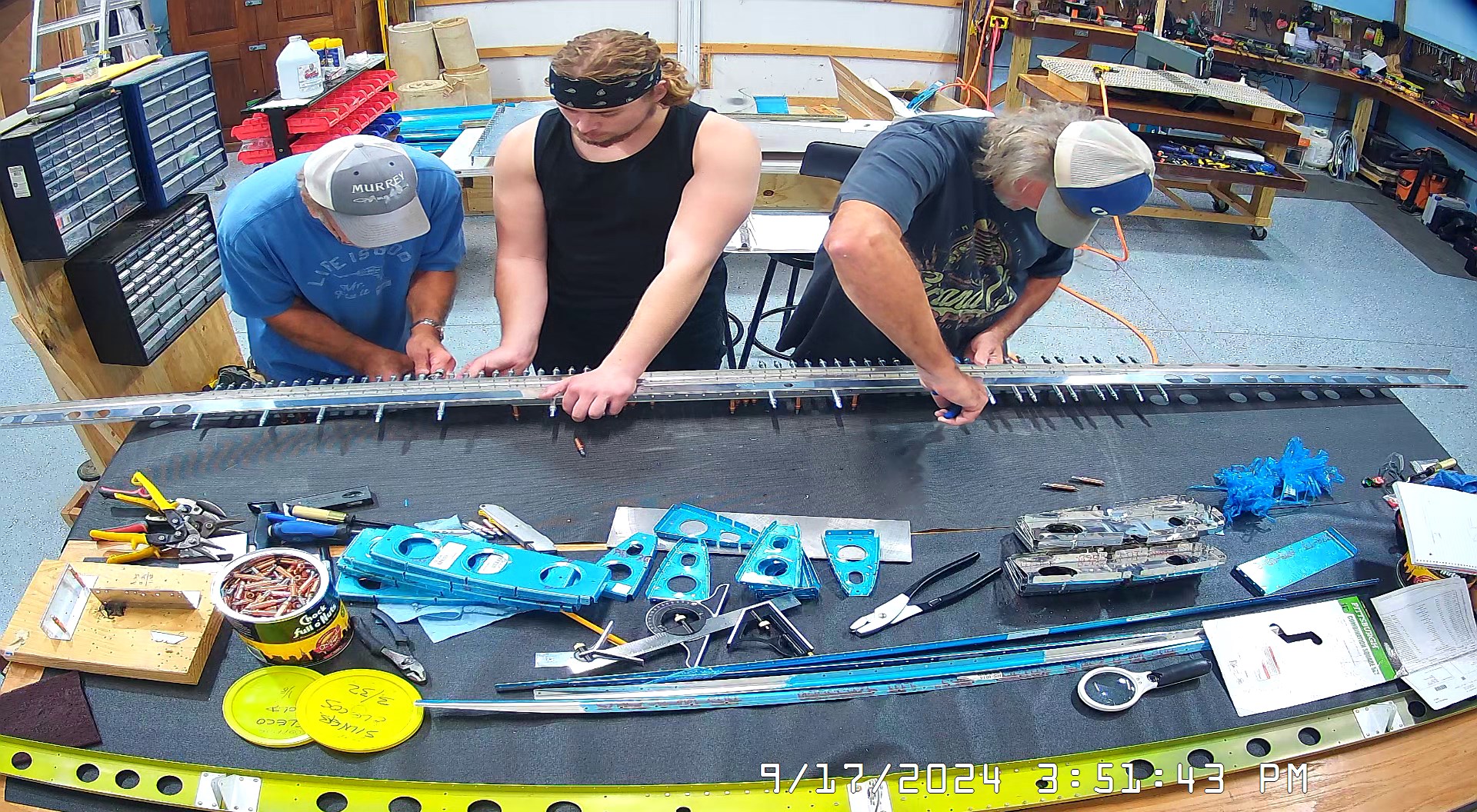

HS: Drilling The Front Spar Caps To The HS-1002

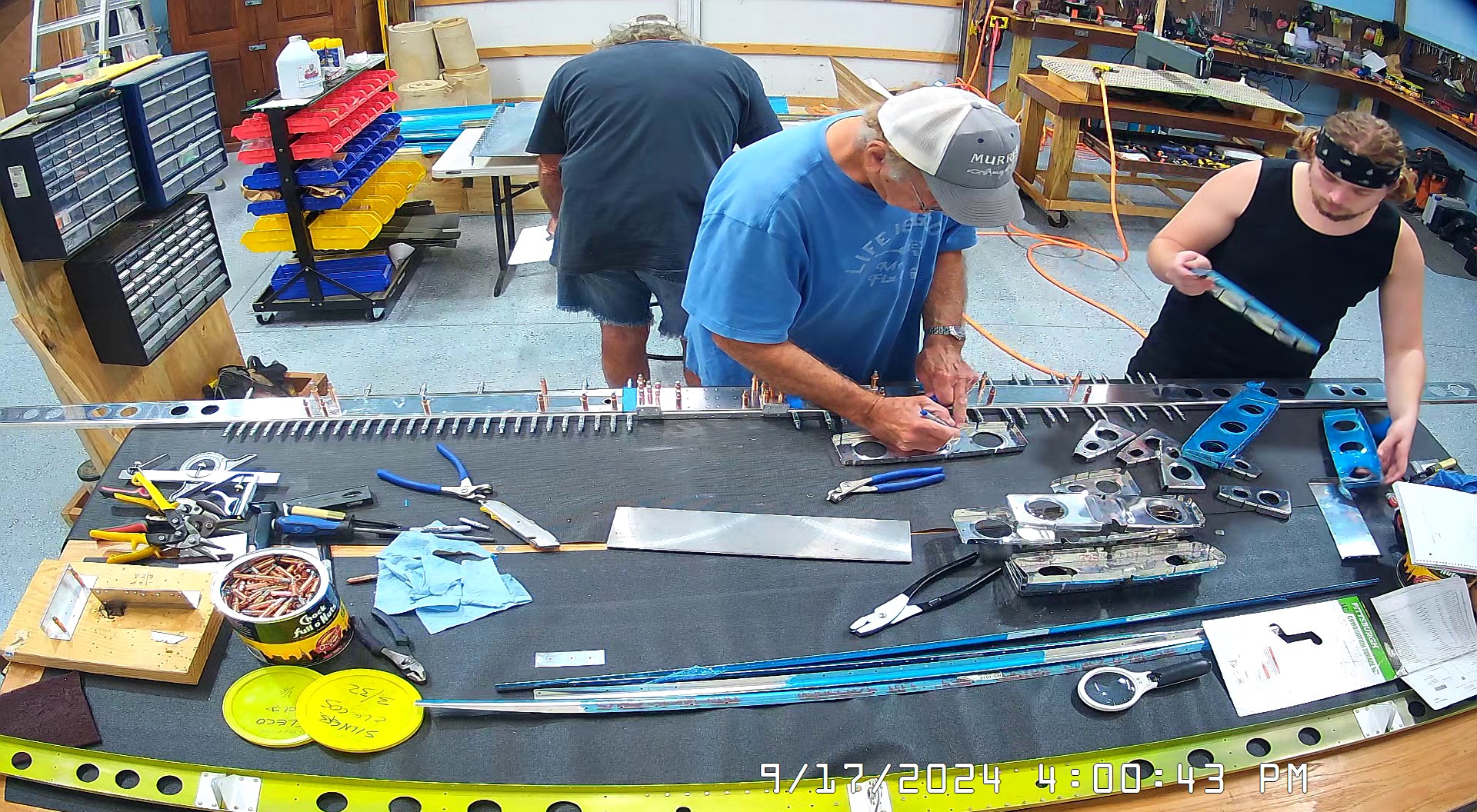

HS: Prepping the HS-1004, HS-904 and HS-905

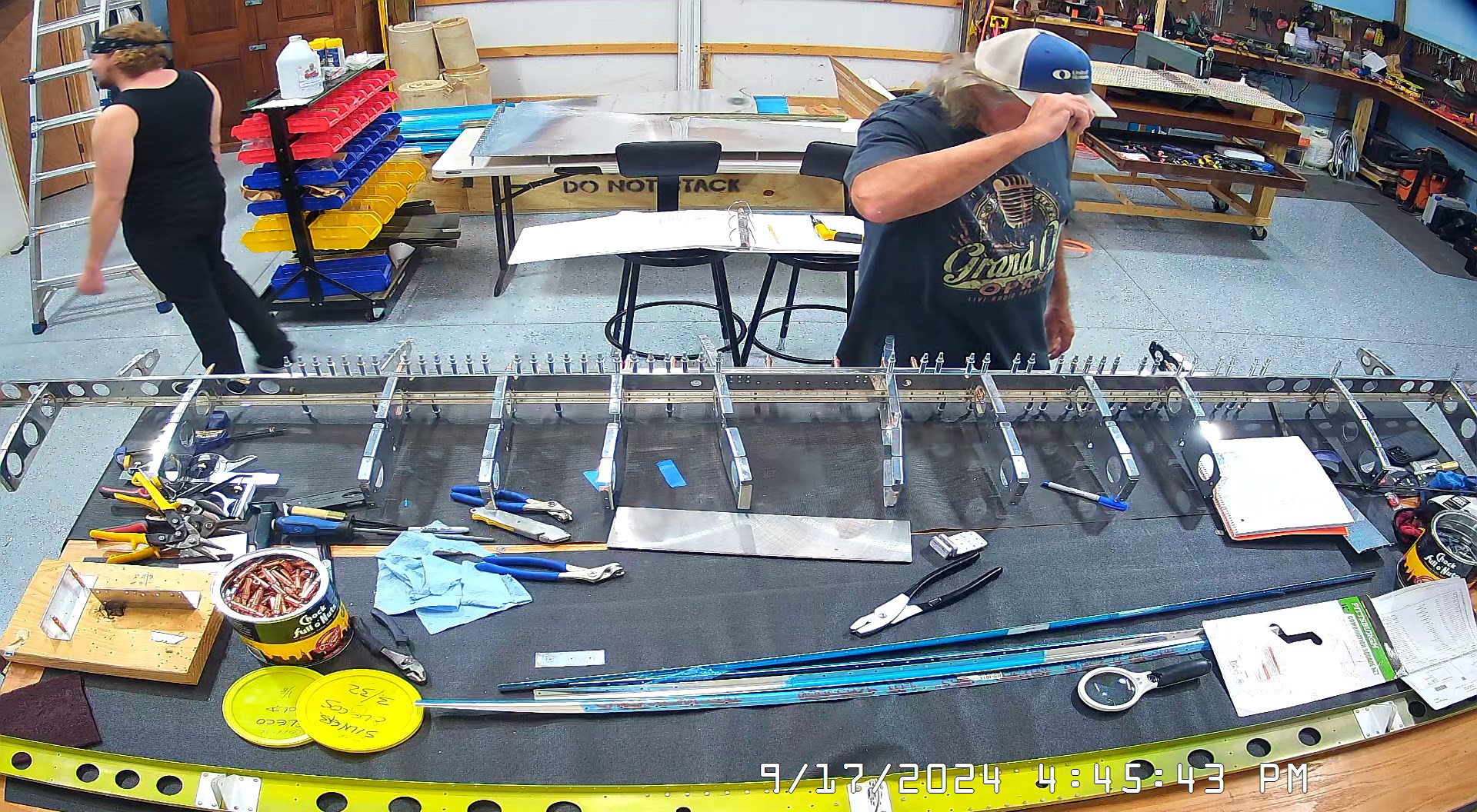

HS: Attaching the HS-905 Front Rib To HS-1002

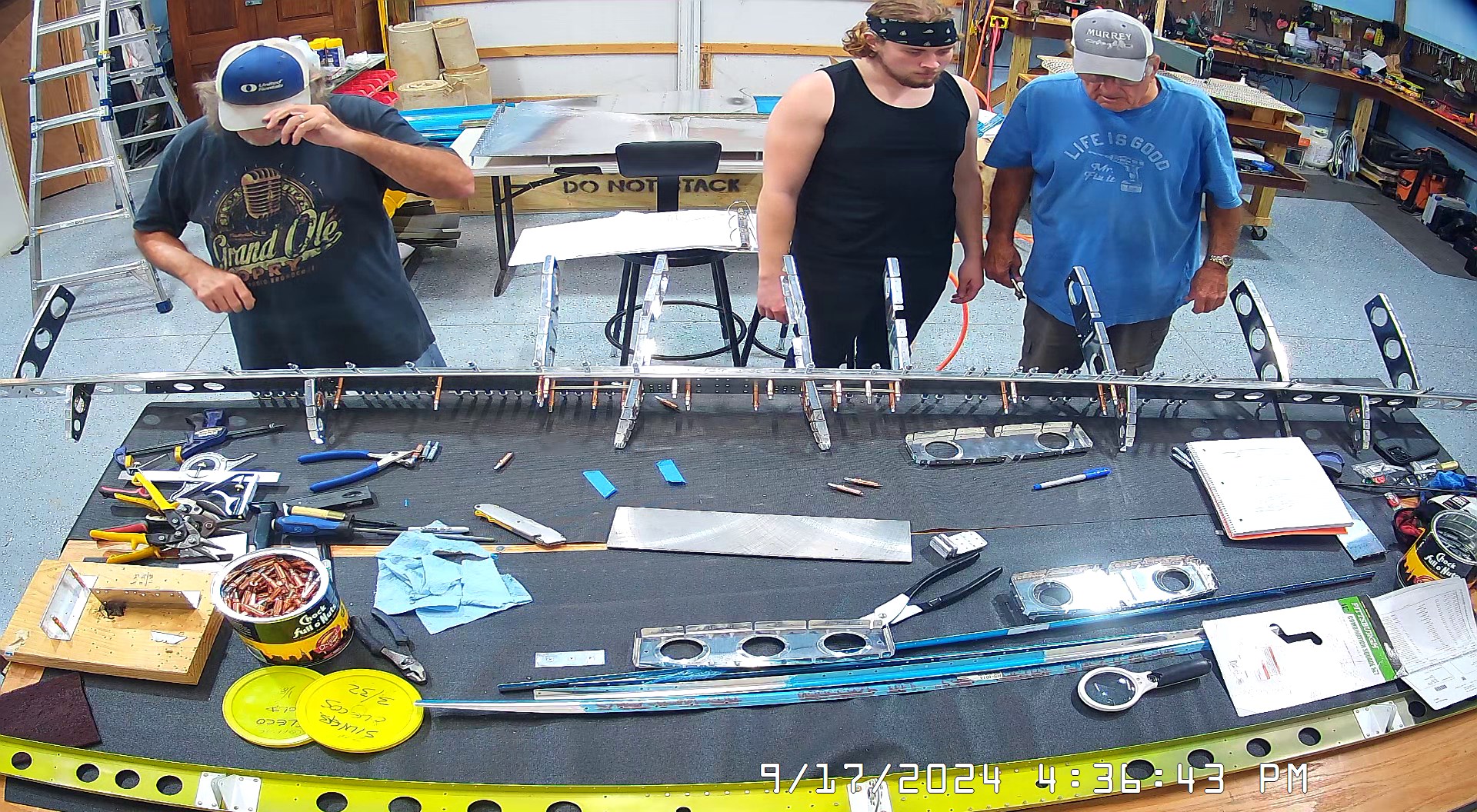

HS: Attaching Deburred HS-1007 Doubler To HS-1002

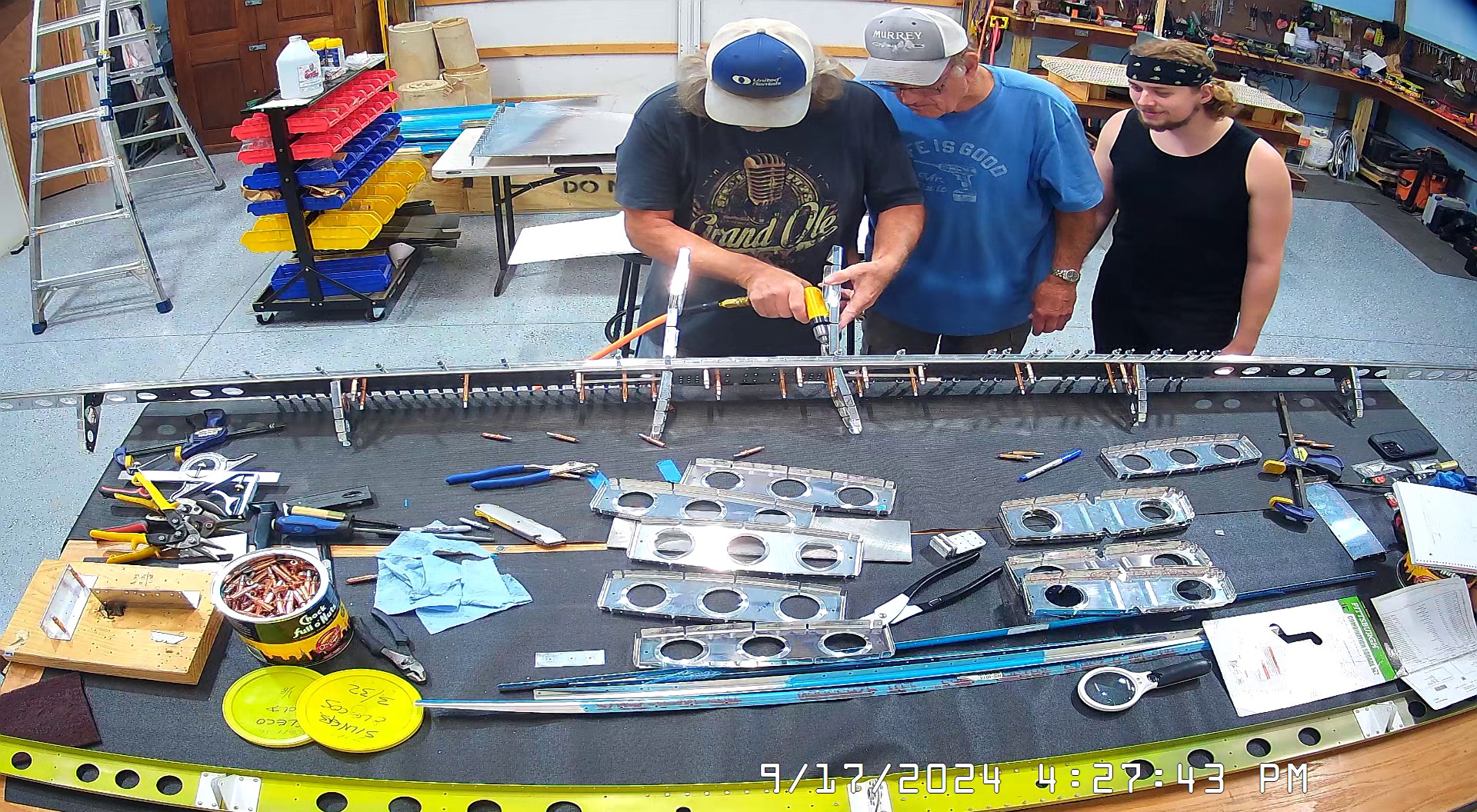

HS: Final Drilling #30 Holes Through HS-1007 & HS-1002
